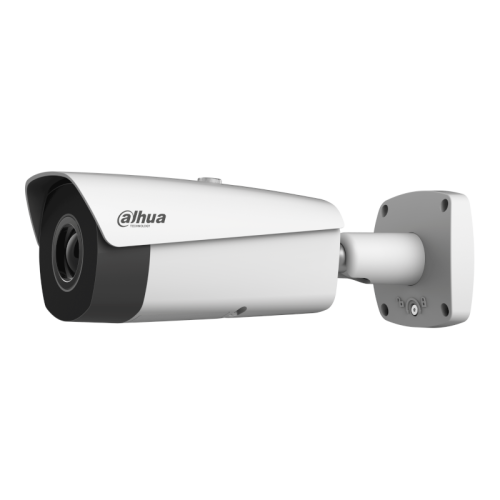

TPC-BF5401-B25-BM-S2

Thermal Camera

Image Sensor

Uncooled VOx Microbolometer

Effective Pixels

400(H)x300(V)

Pixel Size

17um

Thermal Sensitivity(NETD)

40mK

Spectral Range

8~14um

Image Setting

Brightness/Sharpness/ROI/AGC/FFC/3D DNR

Color Palettes

18(Whitehot/Blackhot/Ironrow/Icefire/

Fusion/Rainbow/Globow/Iconbow1/

Iconbow2 .etc)

Thermal Lens

Lens Type

Fixed/F1.0

Focus Control

Athermalized, Focus-free

Focal Length

7.5mm

13mm

25mm

35mm

Angle of View

H: 53.7°

V: 39.7°

H: 30.2°

V: 22.6°

H: 15.5°

V: 11.6°

H: 11.1°

V: 8.3°

Effective Distance①

Man(1.8m*0.5m)

D②: 221m

R③: 57m

I ④: 28m

D: 382m

R: 98m

I: 49m

D: 735m

R: 189m

I: 95m

D: 1030m

R: 265m

I: 132m

Effective Distance

Vehicle(4m*1.4m)

D: 490m

R: 126m

I:63m

D: 850m

R: 219m

I: 109m

D: 1634m

R: 420m

I: 210m

D: 2288m

R: 588m

I: 294m

Compression

H.265 / H.264 / MJPEG

Frame Rate

Main Stream:

Thermal: 1280x1024 / 720P / 400x300 @25/30fps

Sub Stream:

Thermal: 640x512 / 400x300 @25/30fps

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 640 ~ 8192Kbps

Motion Detection

Off/On (4 zone, Rectangle)

Region of Interest

Off/On (4 zone)

Electronic Image Stabilization

(EIS)

NA

Digital Zoom

4x(19 levels)

Flip

180°

Mirror

Off/On

Privacy Masking

Off/On (4 area, Rectangle)

Audio

Compression

G.711A / G.711Mu / AAC / PCM

Intelligence

IVS

Tripwire, Intrusion

Advanced Intelligent Functions

Fire detection & alarm, Cold/Hot spot trace, Human/Vehicle classification

Network

Ethernet

RJ-45

Protocol

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x

Interoperability

ONVIF Profile S & G, API

Streaming Method

Unicast/Multicast

Max. User Access

10 Users/20 Users

Edge Storage

Micro SD (256GB)

Memory status display (Normal / Error / Active / Formatting / Lock),

NAS (Network Attached Storage), Local PC for instant recording

Web Viewer

>IE8,

Management Software

SmartPSS, DSS

Smart Phone

Android, iOS

Certifications

Certification

CE (EN 60950: 2000) FCC (FCC Part 15 SubpartB )

Interface

Video Interface

1 Port (CVBS/BNC)

Audio Interface

1/1 In/Out

RS485

Support

Alarm

2/2 In/Out

Electrical

Power Supply

DC 12V/PoE/ePoE

Power Consumption

Max. 13W

Environmental

Operating Condition

-40°C ~ +70°C (-40°F ~ +158°F)/Less than 95% RH

* Start up should be done at above -40°C (-40°F)

Storage Conditions

-40°C ~ +70°C (-40°F ~ +158°F)/Less than 95% RH

Ingress Protection

IP67

Construction

Casing

Metal

Dimensions

291mm× 103mm× 97mm (11.46" x 4.06" x 3.82")

Net Weight

1.5Kg (3.31 lb)

Gross Weight

1.9Kg (4.19 lb)
