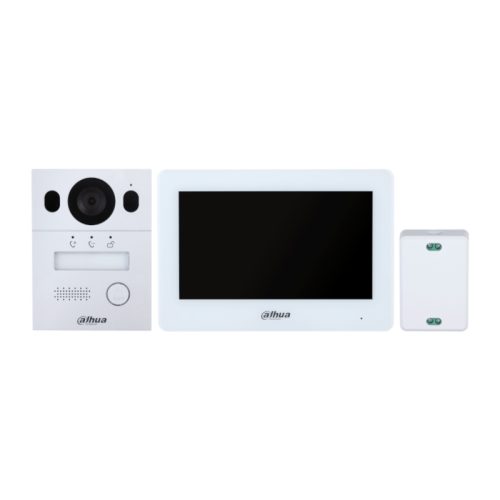

DHI-VTO2003F
|
|
System
|
|
Main Processor
|
Embedded Processor
|
|
Button Type
|
Mechanical
|
|
Basic
|
|
Camera
|
1/2.8" 2 MP CMOS HDR Camera
|
|
Field of View
|
H: 110°; V: 60°
|
|
WDR
|
DWDR
|
|
Noise Reduction
|
3D NR
|
|
Video Resolution
|
P: 960 (H) × 576 (V)
N: 960 (H) × 480 (V)
|
|
Video Frame Rate
|
P: 25 fps
N: 30 fps
|
|
Light Compensation
|
Auto IR
|
|
Day/Night
|
Auto(ICR)/Color/B/W
|
|
Audio Input
|
1
|
|
Audio Output
|
Built-in speaker
|
|
Audio Mode
|
Two-way audio (half–duplex)
|
|
Function
|
|
Unlock Mode
|
Remote unlock
|
|
Leave Videos
|
Yes (SD card inserted in VTH is needed)
|
|
Performance
|
|
Casing Material
|
Aluminum Alloy
|
|
Port
|
|
RS-485
|
1
|
|
Alarm Output
|
1
|
|
Power Output
|
1 × 12 VDC output, 200 mA
|
|
Exit Button
|
1
|
|
Door Status Detection
|
1
|
|
Lock Control
|
1
|
|
Alarm
|
|
Tamper Alarm
|
Yes
|
|
General
|
|
Appearance Color
|
Silver
|
|
Power Supply
|
2-wire controller
|
|
Installation
|
Flush mount; surface mount
|
|
Certifications
|
CE; FCC
|
|
Product Dimensions
|
130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12")
|
|
Protection
|
IP65
IK07
|
|
Operating Temperature
|
–40 °C to +60°C (–40 °F to +140 °F)
|
|
Operating Humidity
|
10%–95% (RH), non-condensing
|
|
Operating Altitude
|
0 m–3000 m (0 ft – 9842.52 ft)
|
|
Power Consumption
|
≤ 1.5 W (standby), ≤ 10 W(working)
|
|
Gross Weight
|
0.502 kg (1.11 lb)
|
|
Storage Temperature
|
–40 °C to +70°C (–40 °F to +158 °F)
|
|
Storage Humidity
|
95% (RH), non-condensing
|
|
DHI-VTH5123H-W
|
|
System
|
|
Main Processor
|
Embedded Processor
|
|
Operating System
|
Embedded operating system
|
|
Network Protocol
|
IPv4; UDP; DNS; TCP
|
|
Basic
|
|
Screen Type
|
Capacitive Touchscreen
|
|
Display Screen
|
7" TFT
|
|
Screen Resolution
|
1024 (H) × 600 (V)
|
|
Audio Compression
|
G.711a; G.711u; PCM
|
|
Audio Input
|
1
|
|
Audio Output
|
Built-in speaker
|
|
Audio Mode
|
Two-way audio with VTO (half–duplex);Two-way audio with app (full–duplex)
|
|
Audio Enhancement
|
Echo suppression/digital noise reduction
|
|
Audio Bit Rate
|
16 kHz; 16 bit
|
|
Function
|
|
Leave Videos
|
Yes (SD card needed)
|
|
DND Mode
|
Do not disturb period can be set; Do not disturb mode can be set.
|
|
Number of Extensions
|
5
|
|
Wi-Fi
|
Yes
|
|
Wireless Standard
|
IEEE802.11b/802.11g/802.11n
|
|
Wireless Frequency Range
|
2.4 GHz
|
|
Storage
|
Micro SD card (up to 64 GB)
|
|
Port
|
|
RS-485
|
1
|
|
Alarm Input
|
6
|
|
Alarm Output
|
1
|
|
Power Output
|
1 (12 V, 200 mA)
|
|
Door Bell
|
Yes (use the alarm input port)
|
|
Performance
|
|
Casing Material
|
PC + ABS
|
|
General
|
|
Appearance Color
|
White
|
|
Power Supply
|
2-wire controller
|
|
Installation
|
Surface Mount
|
|
Certifications
|
CE; FCC
|
|
Product Dimensions
|
130 mm × 189 mm × 23.9 mm (5.12" × 7.44" × 0.94")
|
|
Operating Temperature
|
–10 °C to +55°C (14 °F to +131 °F)
|
|
Operating Humidity
|
10%–95% (RH)
|
|
Operating Altitude
|
0 m–3000 m (0 ft – 4265.09 ft)
|
|
Power Consumption
|
≤ 2.5 W (standby), ≤ 10 W(working)
|
|
Gross Weight
|
0.633 kg (1.40 lb)
|
|
Storage Temperature
|
–40 °C to +70°C (–40 °F to +158 °F)
|
|
Storage Humidity
|
95% (RH), non-condensing
|
|
VTNC1003C
|
|
Performance
|
|
Casing Material
|
PC + ABS
|
|
General
|
|
Appearance Color
|
White
|
|
Power Supply
|
48 VDC
|
|
Certifications
|
CE; FCC
|
|
Accessory
|
Included: Line termination terminal
|
|
Product Dimensions
|
65.2 mm × 46.2 mm × 23.2 mm (2.57" × 1.82" × 0.91")
|
|
Operating Temperature
|
–10 °C to +55°C (14 °F to +131 °F)
|
|
Operating Humidity
|
10%–95% (RH)
|
|
Operating Altitude
|
0 m–3000 m (0 ft – 4265.09 ft)
|
|
Power Consumption
|
3.5 W
|
|
Gross Weight
|
0.13 kg (0.29 lb)
|
