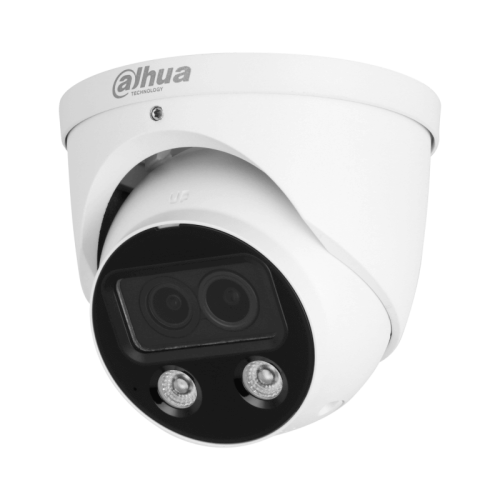

Camera
|
|
Image Sensor
|
1/1.8" + 1/1.8" CMOS
|
|
Max. Resolution
|
2688 (H) × 1520 (V)
|
|
ROM
|
128 MB
|
|
RAM
|
1 GB
|
|
Scanning System
|
Progressive
|
|
Electronic Shutter Speed
|
Auto/Manual 1/3 s–1/100,000 s
|
|
Min. Illumination
|
0.0002 lux @F1.0
|
|
S/N Ratio
|
>56 dB
|
|
Illumination Distance
|
50 m (164.04 ft)
|
|
Illuminator On/Off Control
|
Auto; manual
|
|
Illuminator Number
|
2 (IR light); 2 (warm light)
|
|
Pan/Tilt/Rotation Range
|
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
|
|
Lens
|
|
Lens Type
|
Fixed-focal
|
|
Lens Mount
|
M16
|
|
Focal Length
|
2.8 mm; 3.6 mm; 6 mm
|
|
Max. Aperture
|
F1.0
|
|
Field of View
|
2.8 mm: Horizontal: 97°; Vertical: 48°; Diagonal: 115°
3.6 mm: Horizontal: 75°; Vertical: 39°; Diagonal: 87°
6 mm: Horizontal: 47°; Vertical: 25°; Diagonal: 56°
|
|
Iris Control
|
Fixed
|
|
Close Focus Distance
|
2.8 mm: 4 m (13.1 ft)
3.6 mm: 5 m (16.4 ft)
6 mm: 6 m (19.7 ft)
|
|
DORI Distance
|
Lens
|
Detect
|
Observe
|
Recognize
|
Identify
|
|
2.8 mm
|
58.2 m (190.94 ft)
|
23.3 m (76.44 ft)
|
11.6 m (38.06 ft)
|
5.8 m
(19.03 ft)
|
|
3.6 mm
|
70.3 m (230.64 ft)
|
28.1 m (92.19 ft)
|
14.1 m (46.26 ft)
|
7.0 m
(22.97 ft)
|
|
6 mm
|
116.1 m (380.91 ft)
|
46.5 m (152.56 ft)
|
23.2 m (76.12 ft)
|
11.6 m (38.06 ft)
|
|
Smart event
|
|
IVS
|
Abandoned object; missing object
|
|
Heat Map
|
Yes
|
|
Professional, intelligent
|
|
IVS (Perimeter Protection)
|
Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection
|
|
SMD 3.0
|
Less false alarm, longer detection distance
|
|
Face Detection
|
Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 face attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face, one-inch photo or custom; 3 snapshot strategies (real-time snapshot, optimization snapshot and quality first); face angle filter; optimization time setting
|
|
People Counting
|
Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/monthly/daily reports.
Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm.
Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm.
|
|
Intelligent Search
|
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
|
|
Video
|
|
Video Compression
|
H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
|
|
Smart Codec
|
Smart H.265+; Smart H.264+
|
|
AI Coding
|
AI H.265; AI H.264
|
|
Video Frame Rate
|
Main stream: 2688 × 1520@(1–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Third stream: 1920 × 1080@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
|
|
Stream Capability
|
3 streams
|
|
Resolution
|
4M (2688 × 1520); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
|
|
Bit Rate Control
|
CBR/VBR
|
|
Video Bit Rate
|
H.264: 32 kbps–8192 kbps
H.265: 19 kbps–8192 kbps
|
|
Day/Night
|
Color/B/W
|
|
BLC
|
Yes
|
|
HLC
|
Yes
|
|
WDR
|
DWDR
|
|
White Balance
|
Auto; natural; street lamp; outdoor; manual; regional custom
|
|
Gain Control
|
Auto; manual
|
|
Noise Reduction
|
3D NR
|
|
Motion Detection
|
OFF/ON (4 areas, rectangular)
|
|
Region of Interest (RoI)
|
Yes (4 areas)
|
|
Image Rotation
|
0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
|
|
Mirror
|
Yes
|
|
Privacy Masking
|
4 areas
|
|
Audio
|
|
Built-in MIC
|
Yes
|
|
Audio Compression
|
PCM; G.711a; G.711Mu; G.726; G.723
|
|
Alarm
|
|
Alarm Event
|
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; face detection; people counting in area; stay detection; people counting; people number error detection; security exception; defocus detection; people number alarm; queue time alarm
|
|
Network
|
|
Network Port
|
RJ-45 (10/100 Enhancement Base-T)
|
|
SDK and API
|
Yes
|
|
Cyber Security
|
Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
|
|
Network Protocol
|
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast; DDNS
|
|
Interoperability
|
ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
|
|
Storage
|
FTP; SFTP; Micro SD card (support max. 256 G); NAS
|
|
Browser
|
IE: IE8, IE9, IE11
Chrome
Firefox
|
|
Management Software
|
Smart PSS; DSS; DMSS
|
|
Mobile Client
|
iOS; Android
|
|
Certification
|
|
Certifications
|
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
|
|
Port
|
|
Audio Input
|
1 channel (RCA port)
|
|
Audio Output
|
1 channel (RCA port)
|
|
Alarm Input
|
1 channel in: 5 mA 3-5 VDC
|
|
Alarm Output
|
1 channel out: 300 mA 12 VDC
|
|
Power
|
|
Power Supply
|
12 VDC (±30%); PoE (802.3af); ePoE
|
|
Power Consumption
|
Basic: 3.9 W (12 VDC); 4.6 W (PoE)
Max. (H.265+IR and Warm light on): 9.3 W (12 VDC); 10.5 W (PoE)
|
|
Environment
|
|
Operating Temperature
|
–40 °C to +60 °C (-40 °F to +140 °F)
|
|
Operating Humidity
|
≤ 95%
|
|
Storage Temperature
|
–40 °C to +60 °C (-40 °F to +140 °F)
|
|
Protection
|
IP67
|
|
Structure
|
|
Casing
|
Metal
|
|
Product Dimensions
|
Φ122 mm × 110.9 mm (Φ4.80" × 4.37")
|
|
Net Weight
|
0.75 kg (1.65 lb)
|
|
Gross Weight
|
0.94 kg (2.07 lb)
|
