PFS3010-8GT-96

Ordering Information

Type

Model

Description

PoE Swtich

DH-PFS3010-8GT-96

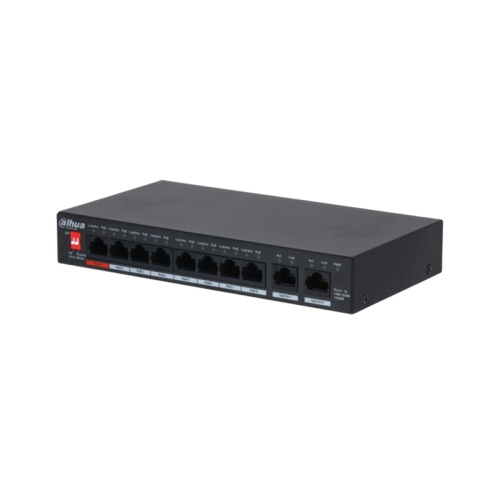

Dahua 10-Port Unmanaged Desktop Switch with 8 Port PoE

PFS3010-8GT-96

10-Port Unmanaged Desktop Switch with 8 Port PoE

Specification

Hardware

Data Transmission Port

Port 1–8: 8 × RJ-4510/100/1000 Mbps (PoE)
Port 9-10: 2 × RJ-45 10/100/1000 Mbps (Uplink)

Power Supply

48 V - 57 V DC

Operaing Temperature

–10 °C to +55 °C (+14°F to +131°F)

Operating Humidity

5% – 95% (RH)

Storage Temperature

–20 °C to +70 °C (–4°F to +158°F)

Storage Humidity

5% – 95%(RH)

Power Consumption

Idling: 3 W
Full load: 96 W

Performance

Capacity

20 Gbps

Packet Forwarding Rate

14.88 Mpps

Packet Buffer Memory

1.5 Mbit

MAC Table Size

4K

Communication Standard

IEEE802.3/IEEE802.3u/IEEE 802.3ab/IEEE802.3x

PoE

PoE Standard

IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt

PoE Power

96 W

Power Consumption Management

Yes

PoE Pin Assignment

1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

Long Distance PoE

250 m long distance PoE transmission

General

Statics Protection

Air discharge: 8 kV
Contact discharge: 6 kV

Thunder-proof

Common mode: 4 kV
Differential mode: 2 kV

Net Weight

0.50 kg (1.10 lb)

Gross Weight

1.32 kg (2.91 lb)

Product Dimensions

190 mm × 100 mm × 30 mm (7.48" × 3.94" × 1.18")

Transmission Performance:

Switch power supply voltage 53V.

CAT5E/CAT6. Max. DC resistance < 10 Ω/100 m

Cable(m)

Load Capacity(W)

Bandwidth(Mbps)

IEEE802.3bt 90 W

100

71.3

1000

150

62

10

200

51

10

250

40

10

Hi-PoE 60 W

100

53

1000

150

50

10

200

47

10

250

37

10

IEEE802.3at 30 W

100

25.5

1000

150

25.5

10

200

25.5

10

250

25.5

10

Note: Data from this table was collected by Dahua test lab and is for reference only . The actual transmission distance may vary due to power consumption of connected devices or the cable type and status.
